CH7206A

如果您对产品有相关疑问,或者遇到任何,您都可以注册网站帐号,
然后到技术支持论坛去提问寻求帮助。

特征


  • YPrPb support for 480i, 576i, 480p and 576p Output

  • Programmable digital input interface supporting RGB and YCrCb input data formats

  • Interlaced to progressive scan conversion for DVD

  • Support for NTSC, PAL TV and Progressive Scan formats

  • Support for SCART output

  • TV connection detection

  • Outputs of CVBS, S-Video and YPbPr

  • Two sets of   individual DAC output pins, CVBS, S-Video and YPbPr to allow switching among TV- out connectors without additional external video switches

  • Programmable power management

  • Four 10-bit video DAC outputs

  • Fully programmable through serial port

  • Offered in a 48-pin LQFP package

描述

The CH7206A is a video TV encoder device for DVD applications which accepts a digital video input signal, encodes and transmits data through four 10-bit high speed DACs. The device is able to generate synchronization signals for NTSC and PAL TV standards with CVBS, S-Video outputs, and YPrPb outputs (480i, 576i, 480p and 576p).

The device accepts data over one 12-bit (or 8-bit) wide data port with dual edge clock data transfer for multiplexed data (24 bit or 16 bit) through variable voltage data port which supports 5 different data formats including RGB and YCrCb.

A high accuracy low jitter phase locked loop is integrated to create outstanding video quality. ITU-R BT.656 interlaced video can be input and scan converted to non-interlaced video.

In addition to TV encoder modes, bypass modes are included which perform color space conversion to HDTV standards and generate and insert HDTV sync signals.

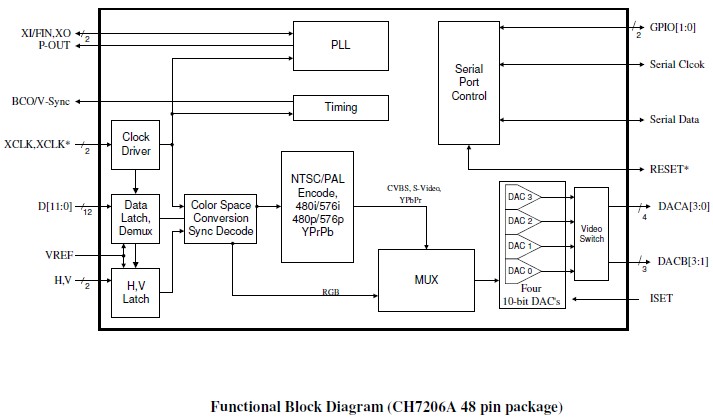

结构图

数据表

应用说明

暂无信息

技术报告

暂无信息

规格

Input Interface TTL/Digital RGB, TTL/YCbCr

Output Interface CVBS , S-Video, YPbPr

Audio Interface  No

Other features  SCART

Package Type  LQFP48

订单信息

Part Number Package Type Number of Pins Voltage Supply

CH7206A-DF  LQFP, Lead Free483.3V

CH7206A-DF-TR  LQFP, Lead Free, Tape & Reel483.3V
